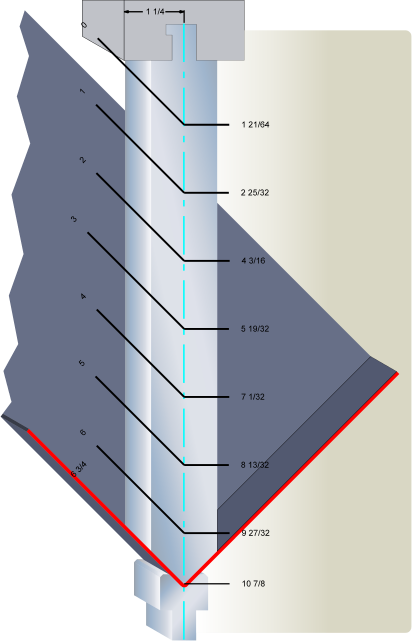

Box forming die sets are used to form a pan, box or similar part that requires the four sides of the sheet to be bent up. The punch must be tall enough so that when the last two bends are made the preformed sides will not hit the ram. The miminum punch height is shown for various box depths for forming 90-degree bends.
